Sizing - How do I determine the right size scales for my machine?
What Size Kit should I Buy?
Simply
purchase a kit that has travels longer than the travel of your
machine.
For a mill,
simply purchase a kit that has travels longer than the travel of
your machine.
As an example,
a Bridgeport milling machine with a 9" x 42" table typically has 12"
travel in the Y axis and 30" travel in the X axis. Therefore you
would need an 12" x 30" mill kit for this machine.
For a lathe,
all you need is a kit that has enough travel for the X (cross slide)
and the Z (carriage) axis travel.
Don't be
confused by the swing, which is the theoretically largest diameter
object that can pass over the bed rails. The swing dimension has
nothing to do with what you need for your DRO kit. As a general
rule, the cross slide travel is roughly half of the swing plus a
little bit more in order to cut over center. For example, a 1340
lathe (13" swing, 40" between centers) will typically have 13/2 =
6.5 + 1 = 7.5 inches of travel on the cross slide. Therefore you
would need an 8" x 40" lathe kit for this machine. However, with
this said, it's always best to measure the travels of your machine.
Look to the left margin for videos on how to do this.
Magnetic
Scale Physical Sizes
Magnetic
scales are named according to the amount of travel the scales are
built to accommodate. Maximum travel will be ~ 5/8" longer, and
overall length will be 5-1/2" longer than stated scale size. Using a
12" scale as an example, it is designed to fully accommodate 12" of
travel, it's maximum travel will be 12-5/8", and overall length will
be 17-1/2".
There are a couple of ways
to determine which size scales you need.
The best way is to
physically measure the travel of your machine as shown in the photos below.
Again, while there are
several alternative ways to measure travel, the safest way to protect your
equipment is to physically measure the travel of your machine. If you
are replacing an older DRO kit, you may have considered measuring the existing
scale lengths and 'match' them to the scales we sell. Unfortunately, there are a
couple of reasons this might not work. First off, when your old DRO kit was
installed, the odds are scales were only available in 6" increments, possibly
even longer (at DRO PROS we carry scales in 2" increments). Second, the
difference between actual travel and physical length differs between
manufacturers.
The other alternative is
to rely on the "spec sheet" or owners manual to obtain machine travels. Quite
often a manufacturer will use the same spec sheet for different models. While
most of the time this will work as second best to measuring, again, there are
many instances where the owners manual is not updated or does not correctly
reflect the true travel of the machine.
Most likely, without
actually measuring your machines travel, there's a pretty good chance you might
not get the right scales. We recommend taking the time to measure to
protect your investment.
The last 'hurdle' to
measuring a machines travel is whether or not it's equipped with a power feed.
Most milling machines with a power feed will have the effective travel reduced
by 5-6" with a power feed installed. DRO PROS recommends to outfit your machine
with a scale that will cover the full travel with the power feed removed.
That's because if for some reason in the future the power feed breaks, or is
uninstalled, then full travel of the mill will not break the scale.
Measuring a Lathe

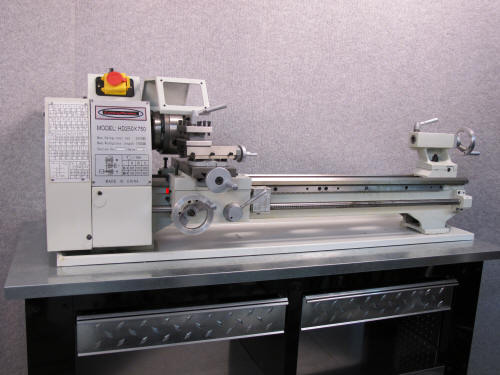

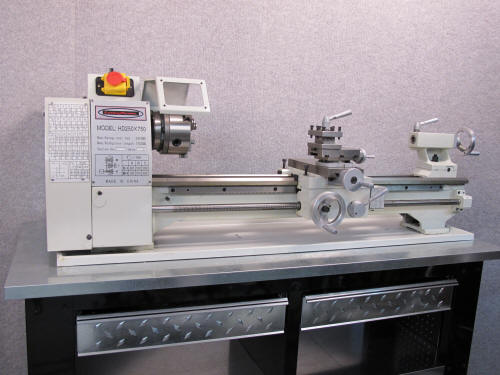

First, position your
carriage towards the headstock until it 'bumps up' against the headstock:

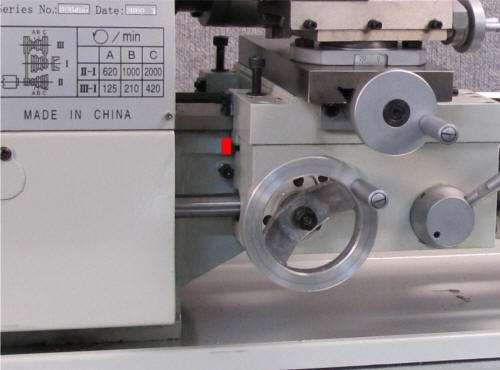

Next, make a mark (ours is
in red) on the bed just to the left of the apron:

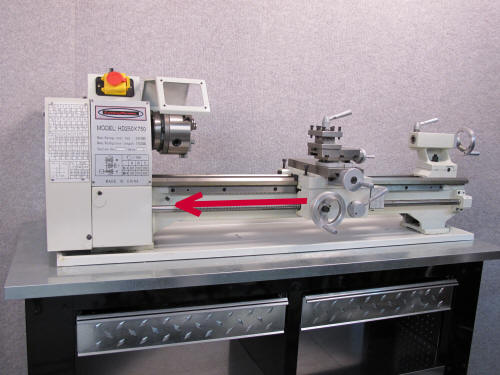

Reposition the carriage
all the way to the tailstock end:

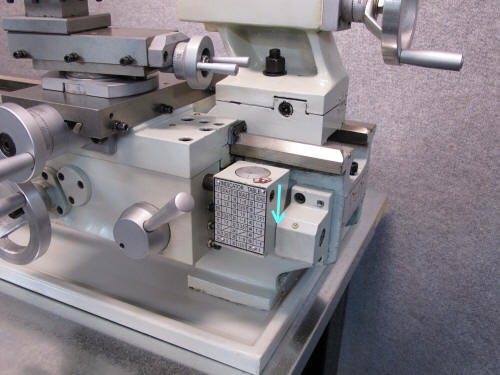

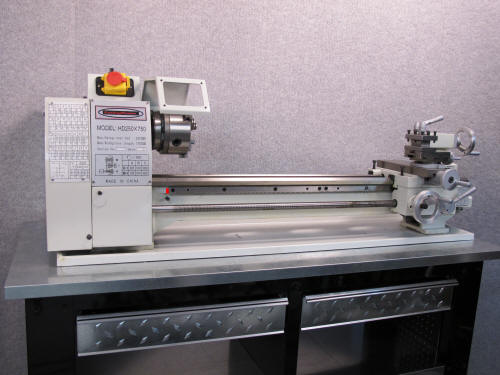

You can see below where
the threading dial housing is now flush against the leadscrew hangar bearing:
And from the front, this
is what it looks like:
Measure between the
previously made red mark and the edge of the carriage apron:
This distance represents
your total carriage travel. As in the case with most scales, we recommend
allowing ~ 1/2 inch clearance on either end of the scale to arrive at your total
required scale travel.
Next, let's take a look at
the cross slide:
Notice the gap between the
back of the cross slide handwheel dial housing and the cross slide. This
indicates the cross slide is not in the full forward position:

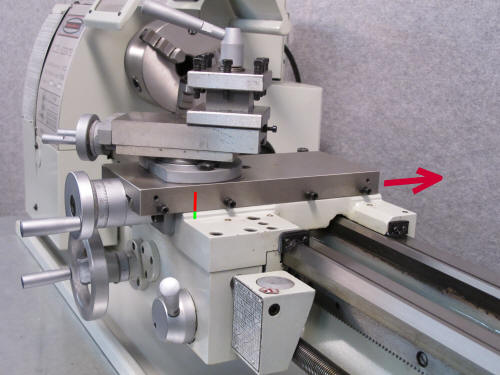

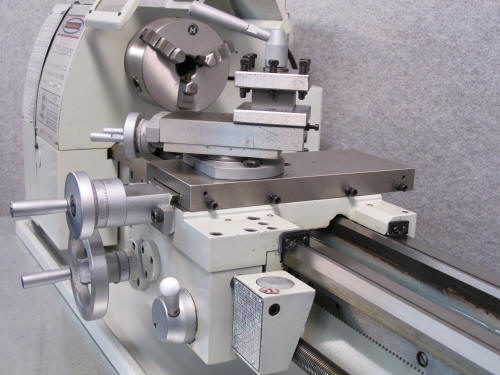

Move the cross slide to
the full most forward position:
Note the cross slide
handwheel dial housing is now flush against the cross slide:

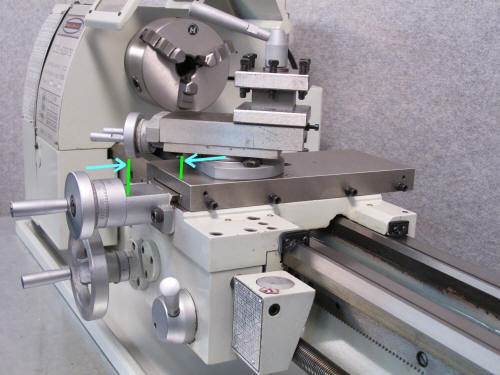

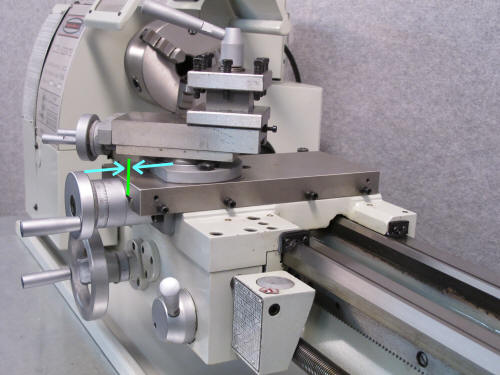

Make a mark on the cross
slide (we used red). Specifically where is not important:

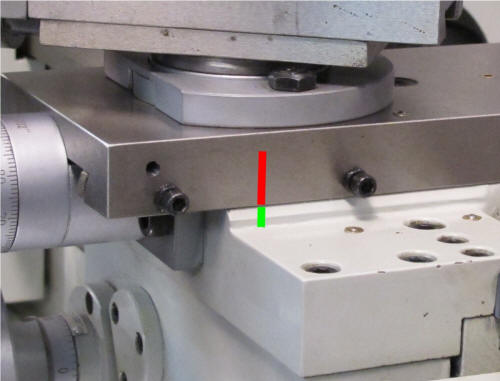

Next, make a corresponding
mark on the saddle (we used green), opposite the mark on the cross slide:
Here is a close-up:

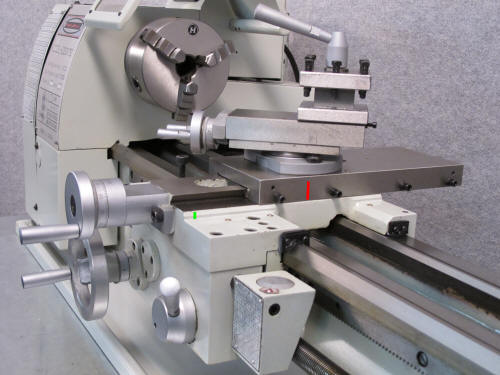

Reposition the cross slide
to the rear-most position:
Notice how the marks
'split':

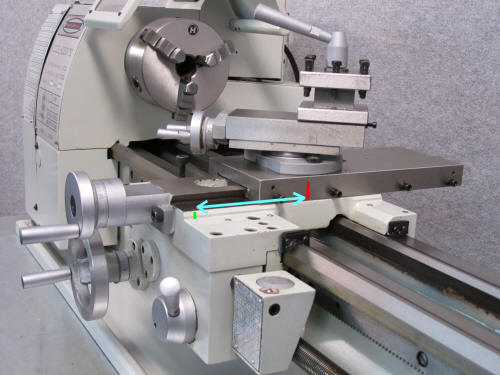

The distance between the
marks represents the movement, or travel, of your cross slide:
Most of the time
we recommend allowing ~ 1/2 inch clearance on either end of the scale to arrive
at your total required scale travel. But the cross slide is unique in that
there's typically not a lot of 'extra' room to keep the scale from 'hanging off'
the end. So oftentimes when we talk to customers we'll recommend a scale with
less than the typical 1/2" clearance. How much 'extra' scale do you need?
Depends on your experience and what you feel comfortable with...
Of course you can always
call and we'll talk you through the decision process. Call our techs now at
(877) 628-6028 - they're glad to help!
