FAQ's - Frequently Asked Questions:



What size drills and taps do I need to install my new Electronica kit?

We recommend having the following drills and taps on hand when installing the Electronica kits:



Scale Endcaps M3 x .5 plug tap

  Customer L. Dietz was kind enough to send us the latest and greatest part numbers from Grainger. His list can be found HERE.





Mounting the Scales M4 x .7 plug tap
  M4 x .7 bottom tap
  3.30mm drill for M4 taps

Scale & Readhead Brackets M6 x 1.0 plug tap
  M6 x 1.0 bottom tap
  5.00mm drill for M6 taps





The scale readout on my Electronica display is flickering - what is happening?

Electronica magnetic scales and readheads have "hash marks" on one side of them. These hash marks must be installed on the same side for the scale to read correctly. If you accidentally mount the scale and the readhead with the hash marks on opposite sides, the scale will not read correctly, and it will cause the display to 'flicker'. Simply remove the scale, turn it so that the hash marks are adjacent to the readheads hash marks, and re-install the scale.



WARNING - Section 6.3 of the Electronica Operations Manual reads in part "Error Compensation is required during DRO installation". This is an incorrect statement? It should read that Error Compensation is not required. Please remember the scales are already laser calibrated at the factory and any attempt by the user to calibrate them with anything less than a laser WILL VOID ALL WARRANTIES.



My Electronica magnetic scale lathe display is not reading correctly on the X (cross slide) axis.

The most likely cause is the display and scale resolution don't match. The display is shipped from the factory with a default 5 micron scale setting, which must be changed to 1 micron for the display to read correctly. Click HERE to download "Setting up an Electronica Lathe Kit" instructions.



My DRO PROS brand display is not reading correctly. Seems like it's reading 5 times higher than it should be.

The most likely cause is the display and scale resolution don't match. Did you upgrade any of your scales to the high resolution 1 micron scales? The display is shipped from the factory with a default 5 micron scale setting, which must be changed to 1 micron for the display to read correctly. Please see our library page for machine specific articles on how to change this setting.



On my glass scale kit, what's the purpose of the "Blue Plastic Piece" or BPP?

The "Blue Plastic Piece"- Between the scale and the reader head there is a blue strip which helps to maintain the correct distance between the reader head and the scale for installation purposes. This should be removed after installation.



I can't seem to get the slot in the brackets to line up with the readhead - am I missing something?

For some reason, this is probably the most missed item when installing the DRO kit, so don't feel bad. Probably 95% of our customers try and align the two large threaded holes on the sides of the readhead with the slots in the bracket set. The brackets are designed to align with the four smaller tapped holes on the bottom side of the readhead, not the two larger holes on the side.



I need some help choosing between all of your kits. Any advice?

To start with, all DRO PROS products are quality built to do the job right. However, with that said, each brand has its own unique advantages. We know that choosing a DRO kit can be difficult, so in our endeavor to help our customers we've developed the following guidelines. While we try to be as impartial as we can, our interaction with our customers and their feedback has certainly influenced us greatly in forming our "opinions". Please keep in mind that every installation is different, only you can know what's best for you.



What is a DRO?

DRO stands for Digital Read Out. A digital readout system digitally displays a machine tools exact position on an electronic display board.



What can a DRO do for me?

A digital readout system can greatly simplify your work, save time, reduce costly mistakes and allow you to produce more accurate, exacting parts. Without a DRO system, an operator must count the number of hand wheel revolutions to determine exact position of a tool head against the table. For example, some milling machine leadscrews are graduated at 16 threads per inch (TPI), which means that for every turn of the hand wheel the table moves 1/16? (.0625), therefore it takes 16 turns to move the table exactly 1?. Other machines are calibrated at 10 TPI, meaning it takes 10 hand wheel revolutions for the table to travel an inch. On the Z axis, it is typical for each division to represent .002?, where one full revolution is equal to .060?. Needless to say, it can quickly become quite confusing! The bottom line is that with a digital display, the days of counting hand wheel revolutions are over. Simply turn the display on and you're ready to go!



Do I have to center the scale on the table?



The short answer is no, you do not. But let's take a look at some examples to illustrate the point. The first series of pictures illustrates a 'traditional' installation on a milling machines' X axis where the scale has been mounted relative to the center of the table. The scale (light blue) has been attached to the table (white). The trolley (dark blue) has been fastened to the base of the machine (grey). Remember, we're presenting a typical installation first, followed by an example where the scale has been offset.

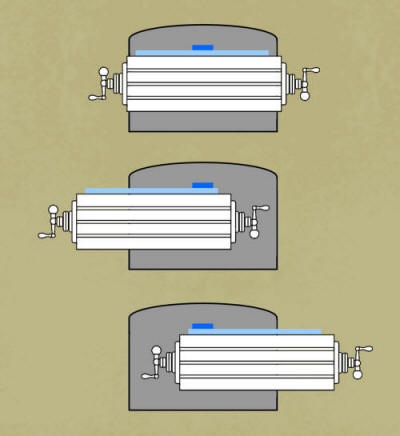

In this example, the scale body has been mounted on the center of the table. Traditionally, this is how most scales are mounted. Note how the trolley (dark blue) is 'centered' on the scale with the table in the middle, or neutral, position.

Notice the readhead is centered to the machine


In this diagram, the table has been moved to the extreme left. Note the trolley is nearing the right end of the scale.



Now the table has been moved to the extreme right most position. Note how the trolley is nearing, but not over, the left end of the scale.



While the last example is most likely what most scale installations will end up looking like, let's take a look at a rather extreme case. Remember, while this might be rather academic, the point is to illustrate how you do not need to exactly 'center your scales' when mounting them. They will work just fine offset to one side or the other.



In this example, the scale body has been mounted well offset to the left of the table. Note how the trolley is 'centered' relative to the scale with the table in the middle, or neutral, position.

Notice the readhead is offset on the machine


In this diagram, the table has been moved to the extreme left. Note the trolley is nearing the right end of the scale.

Now the table has been moved to the extreme right most position. Again, note how the trolley is nearing, but not over, the left end of the scale.



Now we realize no-one is going to mount a scale quite to the extremes of our previous example. But what we're trying to illustrate is this: First, you do not need to take elaborate steps trying to ensure a scale is perfectly 'centered', because it really doesn't matter. What really does matter is this - wherever you do end up mounting your scale (centered or not), make sure the trolley is centered to the scales travel, and doesn't run off the end. As easy as that!





Electronica vs. DRO PROS vs. Easson vs. Fagor

How Do I Choose the Right DRO Kit?



To start with, all DRO PROS products are quality built to do the job right. However, with that said, each brand has it's own unique advantages. We know that choosing a DRO kit can be difficult, so in our endeavor to help our customers we've developed the following chart. While we try to be as impartial as we can, our interaction with our customers and their feedback has certainly influenced us greatly in forming our "opinions". Please keep in mind that every installation is different, only you can know what's best for your particular installation.



6 Year warranty / Magnetic scales / Machine Specific Displays

Electronica



6 Year warranty / Magnetic scales / Machine Specific DisplaysIndustries Best 6 Year Warranty on all Magnetic Scale Kits!PROS: The most technologically advanced DRO kit on the market today. For starters, the Electronica kit uses magnetic scales. Magnetic scales are impervious to coolant or liquid, and are slimmer than glass or inductive scales. They're easier to mount, more durable, and can be cut to any length you need. They can't be contaminated, and measure only .4" thick. The bracket kits are exceptional, being machined, not cast, and are anodized black for a professional finish.

CONS: Such an incredible deal you may end up buying more than just one!

COMMENTS: DRO PROS hits another home run! Affordable, built to last, and one of the best looking, easiest to use displays we've seen.

WHY YOU WOULD CHOOSE ELECTRONICA: If you value quality, ease of installation, and don't want your scales to get contaminated, this is the kit for you!



DRO PROS M Series

3 Year warranty / Glass scales / DVD3 Year Digital Readout Warranty on all DRO PROS brand glass scale kits!PROS: Professionally built, hands down it's the easiest DRO to use on the planet. This display uses traditional glass scales, and you can choose between the standard 5 micron  (0.0002") or optionally upgrade to 1 micron  (0.00005") scales. Lathe kits automatically include SlimLine scales for the cross slide. Covered by a 3 year warranty. Includes the best manuals in the business - completely re-written, English authored, full color Operators and Installation manuals. Unlike the lower priced Easson displays, the DRO PROS displays are machine specific, i.e. the 2 axis mill kit axis are properly labeled as X & Y; the 2 axis lathe kit axis are properly labeled as X & Z. All Mill kits include a professionally produced DVD that clearly explains all functions.

CONS: Glass scales can break or get contaminated.

COMMENTS: Affordable, built to last, and one of the easiest to use displays we've seen.

WHY YOU WOULD CHOOSE THE M SERIES: If you've been waiting for an easy to use but still affordable Digital Readouts, this is it!



Easson

1 Year Digital Readout Warranty on all EASSON brand glass scale kits!1 Year warranty / Glass scalesPROS: The strongest advantage of the Easson is it's budget friendly price. This display uses traditional 5 micron (0.0002") glass scales. Most all of the Easson's functions (i.e. bolt hole, line hole, centerfind etc.) have dedicated function buttons on the front. This makes Easson a truly "walk up and operate" type of digital readout. Covered by a 1 year warranty. Repair and parts are both available directly from DRO PROS, unlike many other resellers that send customers overseas for all "repair and warranty" issues.

CONS: Glass scales can break or get contaminated. Does not include the training DVD. Operators manual has been translated, and at times can be confusing. Lathe display is not machine specific, i.e. the two axis are labeled X & Y, not X & Z as would be proper. SlimLine scales not offered for the lathe display.

COMMENTS: Easson has been producing Digital Readouts for over 20 years now, and continues to be a top seller.

WHY YOU WOULD CHOOSE EASSON: You are an experienced machinist and probably wouldn't watch the DVD or look at the manual anyhow.





Electronica vs. M Series vs. Easson vs. Fagor

    Electronica DRO PROS 3M Easson Fagor
Durability / Resistance to breakage lll l l l
Resistance to Contamination lll l l l
Slim profile lll l l l
Scales can be cut to length lll l l l
Scale and Readhead separate components? lll l l l
Brackets & Hardware - Machine specific? llll l l l
Display - ease of readability llll ll ll ll
Popularity with Customers lll ll ll l
Display Design / Color scheme lll ll ll l
Price ll lll lll l
Ease of Use - How intuitive (simple) is it to operate? lll lll lll l
Overall Build Quality / Reliability llll lll ll lll
Manuals - Thoroughness, easy to understand? llll llll ll l





Glass Scale Kits:

At DRO PROS, we only sell true five bearing glass scales with our readout kits, and with over 70 different size scales to choose from, we fit your machine right! For .0002" resolution scales up to 39.3" in capacity (models 100mm - 1000mm), the scales are included in the price of the kit and there is no surcharge. Simply tell us what size scale you'd like and we'll send the correct length scale. For scales greater than 40" capacity (our oversize scales), there is a small surcharge based on length when purchased with a kit.



Please refer to the chart below for more details:
