We are a FAGOR authorized
dealer of digital readout equipment. The FAGOR
Innova is the latest
and most powerful display offered by Fagor, and DRO PROS has it! We currently offer FAGOR
2 axis Lathe kits. These premium kits include everything you need - a display head, mounting arm, power cord,
detailed installation manual, a super detailed 70 page
operators manual, 0.0002" resolution glass scales up to 3,040mm travel,
shields, mounting hardware, brackets, etc. Simply call or email us
with your scale requirements and we'll outfit your machine with the right size
scales at a DRO PROS price!

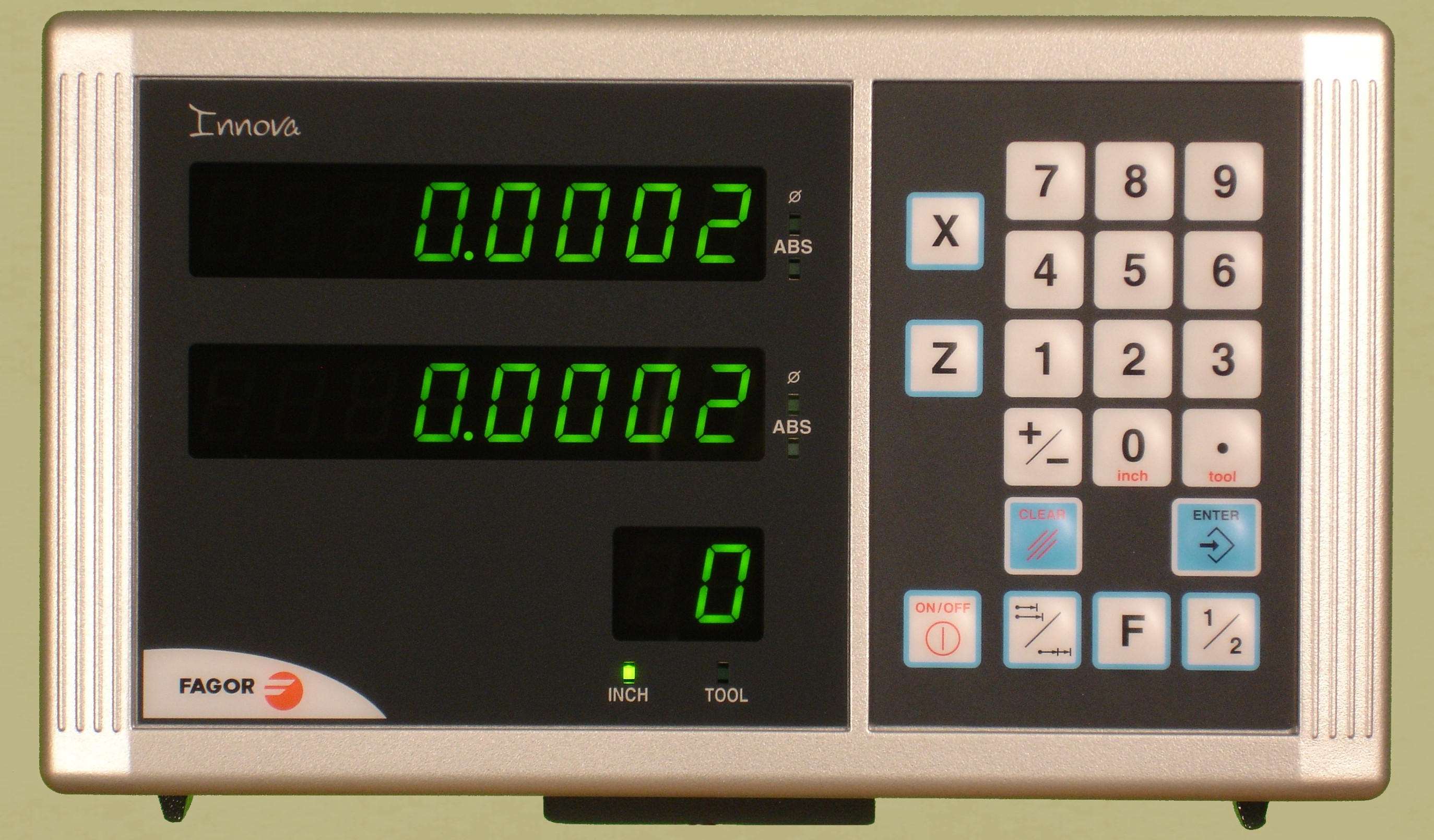

The FAGOR
PROKIT Innova 20i-T
two axis Lathe kit includes everything you need - the display head, mounting
arm, power cord, detailed installation instructions, a super detailed
easily readable operators manual, 2 glass scales of 0.0002" resolution,
mounting hardware, brackets, etc.
Confused? Don't be - Call
us toll free anytime at 1-877-628-6028!
(Click the image above for a larger picture)(Hint: Click
and drag the image
above to control it)

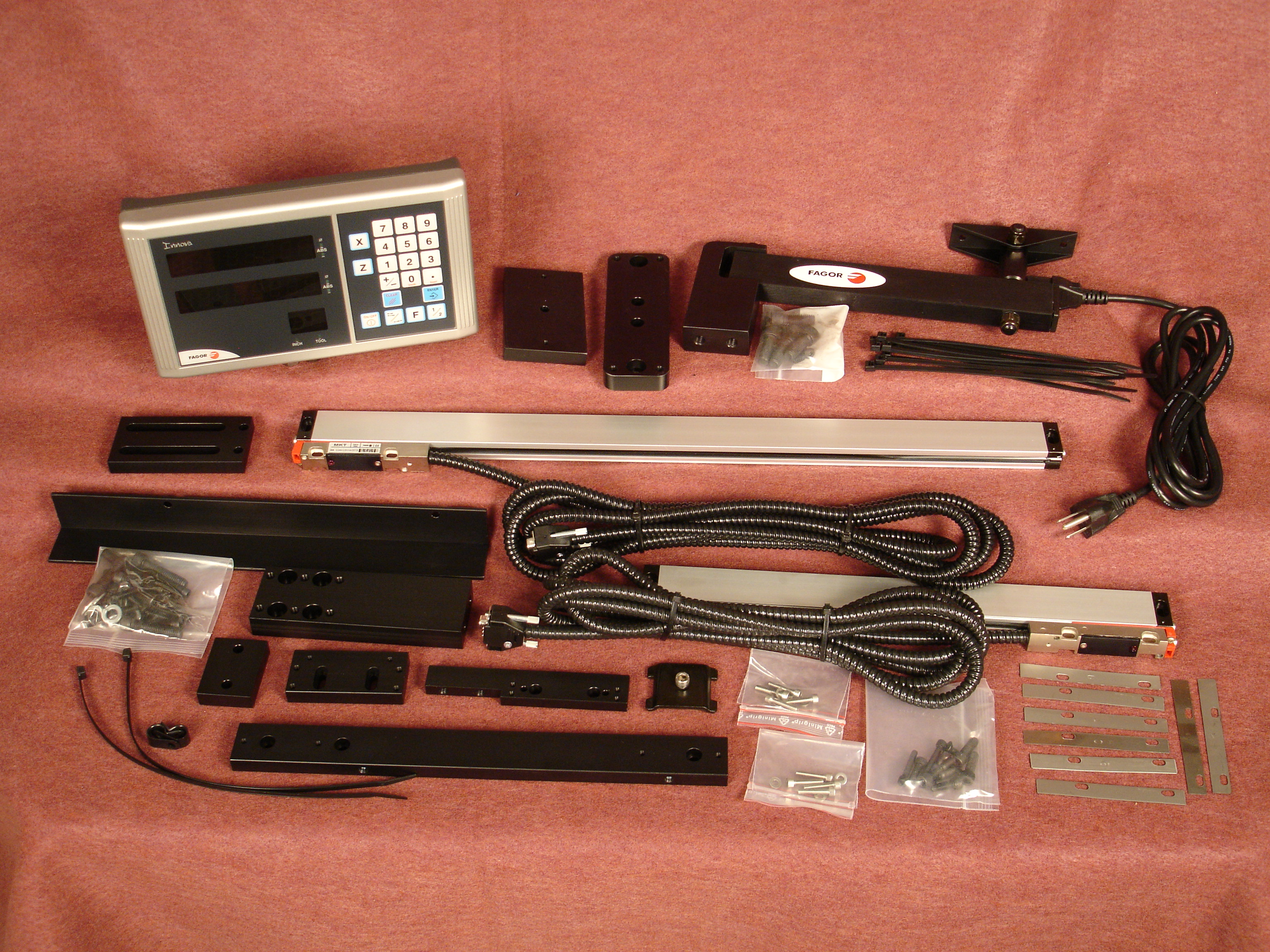

The 2 axis FAGOR Innova kit
pictured above includes the FAGOR "Universal Lathe S" bracket kit. This
particular bracket kit caters to Lathes with "X" or Cross-Slide travel between
6" to 8". For Lathes with Cross-Slide travel between 10" to 12" the "Universal
Lathe M" bracket kit is included. For Lathes with Cross-Slide travel between 14"
to 18" the "Universal Lathe L" bracket kit is included. The kit also includes a
variety of shims, mounting hardware, bolts, installation instructions, and a
super detailed, easily readable, operators manual.
NOTE:
Items are shown out of their protective bubble wrap and factory boxes to better
illustrate what is included in the kit.
All
of our kits ship in their original factory packaging and boxes.
20iT Display,
MKT-47 & FT-32 scales, "Universal Lathe L" Bracket Kit, BSN-Torno Display Arm, EC-2TD connector cable for
FT scale
2,999.00
PROKIT T58
18x135
20iT Display,
MKT-47 & FT-34 scales, "Universal Lathe L" Bracket Kit, BSN-Torno Display Arm, EC-2TD connector cable for
FT scale
3,199.00
PROKIT T59
18x151
20iT Display,
MKT-47 & FT-38 scales, "Universal Lathe L" Bracket Kit, BSN-Torno Display Arm, EC-2TD connector cable for
FT scale
3,299.00
PROKIT T60
18x160
20iT Display,
MKT-47 & FT-40 scales, "Universal Lathe L" Bracket Kit, BSN-Torno Display Arm, EC-2TD connector cable for
FT scale
3,565.00
A Description of
the FAGOR Innova Features:
FAGOR Innova Features:
·
Includes 0.0002" resolution glass scales
·
Stocked and
shipped from the USA, not overseas!
·
Lifetime USA glass
warranty
FAGOR Innova Functions:
·Inch/Metric Display
·Coordinate
Freeze / Hold Modes
·Enter Dimensions
·Display Off Mode
·Fine / Coarse
Resolution (.0002 / .001)
·Radius / Diameter
Function
·20
Tool Presets (Offsets)
·Alarm -
Feedrate limit
·Tool Change
Mode
·Alarm -
Travel limit
·Absolute
/ Incremental
·Part
Centering
·Built In Calculator
·Scaling /
Mold Making
·
Taper (Cone) Calculation
·Easy Setup Mode
·Power Off
Memory
·Machine Error
Compensation
·Armored
Metal Cables
·100 - 240V
Operation
FAGOR Innova Basic and Special Functions Explained:
Inch/Metric Display
- Allows the operator to choose between inch and metric display. Resolution is
.0002" or .005mm.
Enter Dimensions -
Allows operator to manually input desired dimension / coordinate. Fine / Coarse Resolution - Turns off the
last decimal digit (coarse resolution) in which fine resolution is excessive. 20 Tool Presets (Offsets) -
Allows up to 20 tools to be preset in internal memory.
Tool Change Mode -
This allows tools to be changed while working on the same project without having
to reset your absolute zero point each time a tool is swapped out.
ABS/INC Coordinate
Display Switch - Allows the operator to switch between absolute and
incremental display. 'Absolute' display references the work piece zero
coordinate you designate. You may choose the absolute center point of your
workpiece or perhaps a corner of your workpiece, the decision is yours.
Incremental display references any arbitrary coordinate/position without losing
your designated zero point. For example, to locate a point exactly in the middle
of your workpiece you would most likely use 'absolute' display to locate the
point. To locate points exactly .78 distant from an arbitrary point somewhere in
the middle of your workpiece, you would then switch to 'incremental' display,
designate the present position as a zero point, and then simply move your
workpiece until .78 was displayed.
Built In Calculator
- The display includes a built in calculator function which provides normal
mathematical functions such as: add, subtract, multiply, divide, sine, cosine,
tangent, etc.
Taper (Cone) Calculation - Automatically
calculates the taper angle (cone) of a part by simply touching two of its
points.
20 Reference Datum
Points - In many batch machining operations, the operator has to switch
between 'absolute' and 'incremental' displays many times, which is not
convenient and can potentially lead to mistakes. The 20 Reference Datum Points
feature allows the operator to designate up to 20 separate data points, which
greatly simplifies machining of repetitive parts.
Power off memory -
This function allows the operator to store the work piece zero position in
memory. If the machine is turned off at night or there is a power failure, the
zero reference points can be recovered without having to reestablish the work
piece zero point.
Armored Metal Cables - All cables are
protected by a hardened metal sheathing.
Coordinate Hold / Freeze Modes - Enables
'freezing' of the display while still reading the real position of the axis.
Useful when changing tools and presetting dimensions of the new tool.
Display Off Mode -
Allows the display to be turned off while still keeping track of current
position.
Radius / Diameter - When measuring radii
or diameter, enables the operator to display twice the real displacement.
Alarm / Travel Limit
- Sounds travel alarm when scale travel limits are exceeded.
Scaling / Mold Making - For mold making, allows the operator to enter a
shrink factor to compensate for material shrinkage during cooling. Easy Setup Mode - Enables access to special functions, such as swapping
or 'reversing' the direction a scale reads.
Machine Error
Compensation - Common to all of Fagor's displays, provides improved scale
accuracy.
At
DRO PROS, we only sell true five bearing glass scales with our
readout kits, and with over 70
different size scales to choose from, we fit your machine right! For .0002"
resolution scales up
to 39.3" in capacity (models 100mm - 1000mm), the scales are included in the
price of the kit and there is no surcharge. Simply tell us what size scale
you'd like and we'll send the correct length scale. For scales greater than 39"
capacity (our oversize scales), there is a small surcharge based on length when
purchased with a kit.
Please refer to the chart below
for more details:
Choose from the following scales:
ScaleSize
Rec'mdScale
Travel
mm/inches
Maximum
Travel(Approx)
mm/inches
OverallScale
Length
GS105 micron0.0002" /
.005mm
GS111 micron0.00005"
/ .001mm
GS30"Slimline"5 micron0.0002" /
.005mm
GS31"Slimline"1 micron0.00005"
/ .001mm
Model
Cost w/kit
Cost Alone
Model
Cost w/kit
Cost Alone
Model
Cost w/kit
Cost Alone
Model
Cost w/kit
Cost Alone
100mm
100 / 3.9"
125 / 4.9"
9.9"
GS10-100
Free
$133
GS11-100
+ $50
$183
GS30-100
Free
$133
GS31-100
+ $50
$183
150mm
150 / 5.9”
175 / 6.9”
11.9"
GS10-150
Free
$133
GS11-150
+ $50
$183
GS30-150
Free
$133
GS31-150
+ $50
$183
200mm
200 / 7.8"
225 / 8.8"
13.8"
GS10-200
Free
$138
GS11-200
+ $50
$188
GS30-200
Free
$138
GS31-200
+ $50
$188
250mm
250 / 9.8"
275 / 10.8"
15.8"
GS10-250
Free
$143
GS11-250
+ $50
$193
GS30-250
Free
$143
GS31-250
+ $50
$193
300mm
300 / 11.8"
325 / 12.8"
17.8"
GS10-300
Free
$147
GS11-300
+ $50
$197
GS30-300
Free
$147
GS31-300
+ $50
$197
350mm
350 / 13.7"
375 / 14.7"
19.7"
GS10-350
Free
$150
GS11-350
+ $50
$200
GS30-350
Free
$150
GS31-350
+ $50
$200
400mm
400 / 15.7"
425 / 16.7"
21.7"
GS10-400
Free
$156
GS11-400
+ $50
$206
GS30-400
Free
$156
GS31-400
+ $50
$206
450mm
450 / 17.7"
475 / 18.7"
23.7"
GS10-450
Free
$160
GS11-450
+ $50
$210
GS30-450
Free
$160
GS31-450
+ $50
$210
500mm
500 / 19.6"
525 / 20.6"
25.6"
GS10-500
Free
$166
GS11-500
+ $50
$216
GS30-500
Free
$166
GS31-500
+ $50
$216
550mm
550 / 21.6"
575 / 22.6"
27.6"
GS10-550
Free
$169
GS11-550
+ $50
$219
not available
600mm
600 / 23.6"
625 / 24.6"
29.6"
GS10-600
Free
$179
GS11-600
+ $50
$229
650mm
650 / 25.5"
675 / 26.5"
31.5"
GS10-650
Free
$182
GS11-650
+ $50
$232
700mm
700 / 27.5"
725 / 28.5"
33.5"
GS10-700
Free
$187
GS11-700
+ $50
$237
750mm
750 / 29.5"
775 / 30.5"
35.5"
GS10-750
Free
$191
GS11-750
+ $50
$241
800mm
800 / 31.0"
825 / 32.0"
37.0"
GS10-800
Free
$197
GS11-800
+ $50
$247
850mm
850 / 33.4"
875 / 34.4"
39.4"
GS10-850
Free
$206
GS11-850
+ $50
$256
900mm
900 / 35.4"
925 / 36.4"
41.4"
GS10-900
Free
$226
GS11-900
+ $50
$276
950mm
950 / 37.4"
975 / 38.4"
43.4"
GS10-950
Free
$229
GS11-950
+ $50
$279
1000mm
1000 / 39.3"
1025 / 40.3"
45.3"
GS10-1000
Free
$292
GS11-1000
+ $50
$342
1100mm
1100 / 43.3"
1125 / 44.3"
49.3"
GS10-1100
+ $50
$340
1200mm
1200 / 47.2"
1225 / 48.2"
53.2"
GS10-1200
+ $50
$404
Why does DRO
PROS post their digital readout part prices online when other companies don't?
That's because if you were to find out what other
companies are going to charge you for parts
when you need them, you
might not buy their digital readout kit in the first place!
At DRO PROS, we're proud to show off our low part prices.
Go DRO PROS!
Why should I buy from DRO PROS?
We speak
English - We answer our phones - Same day shipping
Our goal is to make customers for life. We feel that, in the long
run, treating customers right will yield much more than simply
"going for the sale". In accordance with that, we have attempted to
pass on some ideas to help you, the customer, in completing your
purchase decision:
Price.
Probably the most talked about factor when buying a
digital readout.
Price can also be the most misleading, and perhaps worst way, to
judge a digital readout kit. We've all heard the old adage, "You get
what you pay for." Before the internet, it was true, price did
generally correlate directly to value. But that was yesterdays
economy. All resellers obtained their goods the same way, and
therefore incurred the same costs. In today's economy, the market
has changed drastically. At DRO PROS, we import and sell directly to
you. Unlike our competitors, we do not have Western and Eastern
sales divisions and multi layers of management to support. One
location, one cost, and the savings get passed on to you!
Intuitiveness or "Ease of Use".
Probably the
most important, and hardest to determine factor when buying a
readout.
Think in terms of after the sale. Even if you get an absolute 'rock
star' bottom line price that would make William Shatner proud, if
the
digital readout
is not user friendly, you still didn't get a 'deal'. The whole point
of getting a
digital readout
is to make your work easier and more enjoyable. If the
digital readout is poorly designed, too complicated, if the display
isn't bright enough, or in other words is 'user unfriendly', you'll
regret your purchase decision every time you turn it
on. It simply won't matter what you paid, it's not worth
it!
Support.
Most likely the second most important, and perhaps most overlooked
factor when buying a
digital readout.
Imagine trying to reach a technician when you've bought a
digital readout
from an overseas reseller! Yet every day, people "save" $50 and buy
products on eBay without stopping to think what will happen when
they need service or tech support. Some
digital readout
resellers don't even publish a phone number! While our competitors
continue to pare down or even totally eliminate their customer
support, we continue to expand our Customer Service. We've
completely re-written our manuals, top to bottom, to better serve
you, the customer. Our Live Demo feature allows us to interactively
guide you to the best decision based on what you do. Our Video
Tutorials are the best in the industry, and are available free for
you, our customers. Our tech help is the best in the business - our
techs all know our readouts inside and out. Nobody knows digital readouts like
DRO PROS!
Warranty.
Of course, all DRO PROS
digital readout
kits come with a standard, 3 Year USA digital readout warranty. Something not quite
working correctly? Call us, don't get redirected overseas by the
other guys!
Parts.
Can
you believe some resellers don't carry parts? That's right, buy from
the "other guys", break a scale, and you get to replace the entire
digital readout
kit! Don't assume you can just go buy a different brand scale,
either, because most manufacturers use different connectors on their
scales. If that wasn't enough, even among those with a common
connector, such as a DB9, most are hard wired differently. Finally,
don't overlook the cost of parts. At DRO PROS, an
800mm replacement scale will cost you $197. A similar scale sold
extensively by a European company will cost nearly $700! Finally, we
have a massive inventory of parts, so rest easy - a replacement part
is only a phone call away!
The Best
Value.
We literally search world-wide for the best value
digital readout
products on the planet. If there was a better
digital readout
package to be sold, we would be selling it. Yes, we've seen cheaper
units on eBay, but there is a reason they're cheaper. Think poor
quality, no parts, no manual, non-existent customer service, poor
product fit/finish etc.
Customer
Service.
We pledge to
never "over sell" you on a product that won't work well for you. Our
philosophy is to try and save you money and get the best value kit
tailored to the machinery you have. Many of our customers are
surprised when we recommend against buying a more expensive brand.
Again, our philosophy is to build customers for life. Give us a call
and let us save you money!
Shipping.
Most orders
ship the same day, the next at the latest. We do not 'drop' ship, we
have our own massive warehouse of inventory right here on site. We
use FedEx, you'll get a tracking number emailed to you immediately,
and we cover all shipping insurance automatically.
The
Company.
DRO PROS is a
veteran owned, American company. We enjoy selling quality products
at competitive prices. We believe that providing the best
customer service is the key to success. No other company spends more
time on the phone with customers than we do. Even in a down economy,
our company continues to thrive and grow. We look forward to earning
your business!
The Bottom
Line.
Our line of
digital readout's are simply the most user friendly readouts on the
planet. Because of our direct marketing structure, they're also
extremely affordable. Coupled with our extensive customer service
and affordable parts, our Digital Readout products are simply the
best value on the planet.
Shipping:
Domestic Shipping to
the United States:
All digital readout shipping is done
via FedEx for a flat rate of $43. You'll get a tracking number emailed
direct to you from FedEx, enabling you to track your shipment door to door!
We cover insurance against any potential shipping damages, so no hidden fees
here!
International Shipping
outside the United States:
All of our DRO shipping is
done via the United States Postal Service. We charge a flat rate of $80
shipping to Canada and $140 for International shipping.
3 Year Warranty:
All
DRO PROS
brand digital readouts come with a written, 3 year warranty.
All warranty claims are handled directly by DRO PROS.
No run-arounds, no hassle!
At DRO PROS, we
take care of our customers.
Have an issue or need some
help? Let us take care of it with a toll-free call to California!
Call us now TOLL
FREE within the United States at 1-877-628-6028!
Customers outside the
United States can always reach us at (707) 452-8437
Professional Digital
Readout kit packages start at only $599!
Our Kit and Part Prices always beat
Heidenhain Newall Acurite Sargon & Fagor!
Call Toll Free now at
1-877-628-6028 for all your digital readout needs!
